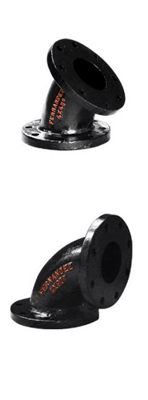

Codos 45°
| Diámetro Nominal | Dimensiones en pulgadas | Espesor Pulgadas | Peso Aproximado | ||
|---|---|---|---|---|---|
| Distancias | Radio | Pulgadaas | |||
| m.m | pulg. | A | R | T | Kilos |
| 51 | 2 | 2.5 | 2.41 | .35 | 5 |
| 63 | 2 1/2 | 3.0 | 2.85 | .35 | 7 |
| 76 | 3 | 3.0 | 3.62 | .48 | 9 |
| 100 | 4 | 4.0 | 4.81 | .52 | 18 |
| 150 | 6 | 5.0 | 7.25 | .55 | 25 |
| 200 | 8 | 5.5 | 8.44 | .60 | 41 |
| 250 | 10 | 6.5 | 10.88 | .80 | 59 |
| 300 | 12 | 7.5 | 13.25 | .87 | 88 |
| 350 | 14 | 7.5 | 12.06 | .66 | 100 |
| 400 | 16 | 8.0 | 13.25 | .70 | 127 |
| 450 | 18 | 8.5 | 14.50 | .75 | 147 |
| 500 | 20 | 9.5 | 16.88 | .80 | 195 |
| 600 | 24 | 11.5 | 18.12 | .89 | 286 |
| 750 | 30 | 15.0 | 27.75 | 1.03 | 508 |
| 900 | 36 | 18.0 | 35.00 | 1.15 | 796 |
Codos 90°
| Diámetro Nominal | Dimensiones en pulgadas | Espesor Pulgadas | Peso Aproximado | ||
|---|---|---|---|---|---|
| Distancias | Radio | Pulgadaas | |||
| m.m | pulg. | A | R | T | Kilos |
| 51 | 2 | 4.5 | 3 | .35 | 6 |
| 63 | 2 1/2 | 5.0 | 3.5 | .35 | 9 |
| 76 | 3 | 5.5 | 4 | .48 | 11 |
| 100 | 4 | 6.5 | 4.5 | .52 | 20 |
| 150 | 6 | 8.0 | 6.0 | .55 | 29 |
| 200 | 8 | 9.0 | 7.0 | .60 | 48 |
| 250 | 10 | 11.0 | 9.0 | .80 | 75 |
| 300 | 12 | 12.0 | 10.0 | .87 | 106 |
| 350 | 14 | 14.0 | 11.5 | .66 | 131 |
| 400 | 16 | 15.0 | 12.5 | .70 | 168 |
| 450 | 18 | 16.5 | 14.0 | .75 | 204 |
| 500 | 20 | 18.0 | 15.5 | .80 | 263 |
| 600 | 24 | 22.0 | 18.5 | .89 | 408 |
| 750 | 30 | 25.0 | 21.5 | 1.03 | 649 |
| 900 | 36 | 28.0 | 24.5 | 1.15 | 968 |
