Pluvial

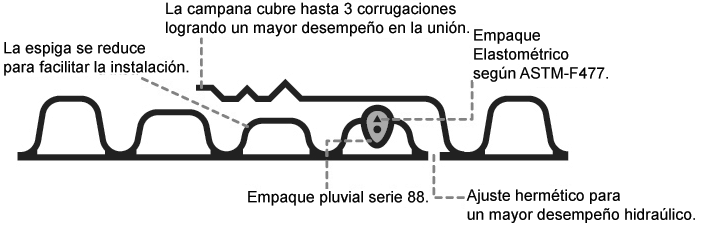

Con esta tecnología hemos logrado cumplir los requisitos más estrictos de hermeticidad a los finos.
| Diámetro nominal | Diámetro promedio interior | Diámetro promedio exterior | Espesor pared interior mínimo | Rigidez mínima requerida al 5% de deflexión | Rigidez real obtenida al 5% de deflexión | Peso | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Kg/6 m | lbs/20 pies | |||||||||||
| 300mm | 12.00" | 308mm | 12.15" | 367mm | 14.45" | 0.9mm | 0.035" | 345kN/m2 | 50psi | 81.16psi | 28.96kg | 63.80lbs |
| 375mm | 15.00" | 380mm | 14.98" | 448mm | 17.57" | 1.0mm | 0.039" | 290kN/m2 | 42psi | 49.76psi | 42.00kg | 92.50lbs |
| 450mm | 18.00" | 459mm | 18.07" | 536mm | 21.20" | 1.3mm | 0.051" | 275kN/m2 | 40psi | 56.71psi | 58.38kg | 128.60lbs |
| 600mm | 24.00" | 612mm | 24.08" | 719mm | 27.80" | 1.5mm | 0.059" | 235kN/m2 | 34psi | 42.21psi | 99.93kg | 220.30lbs |
| 750mm | 30.00" | 762mm | 30.00" | 892mm | 35.10" | 1.5mm | 0.059" | 195kN/m2 | 28psi | 40.80psi | 145.83kg | 321.50lbs |
| 900mm | 36.00" | 914mm | 36.00" | 1059mm | 41.70" | 1.7mm | 0.067" | 150kN/m2 | 22psi | 27.10psi | 191.83kg | 422.90lbs |
| 1050mm | 42.00" | 1054mm | 41.40" | 1212mm | 47.70" | 1.8mm | 0.070" | 140kN/m2 | 20psi | 28.90psi | 239.77kg | 528.60lbs |
| 1200mm | 48.00" | 1209mm | 47.60" | 1361mm | 53.50" | 1.8mm | 0.070" | 125kN/m2 | 18psi | 23.30psi | 283.50kg | 625.00lbs |
| 1500mm | 60.00" | 1512mm | 59.50" | 1684mm | 66.30" | 1.8mm | 0.070" | 95kN/m2 | 14psi | 19.00psi | 439.56kg | 969.00lbs |
